Grid Plus

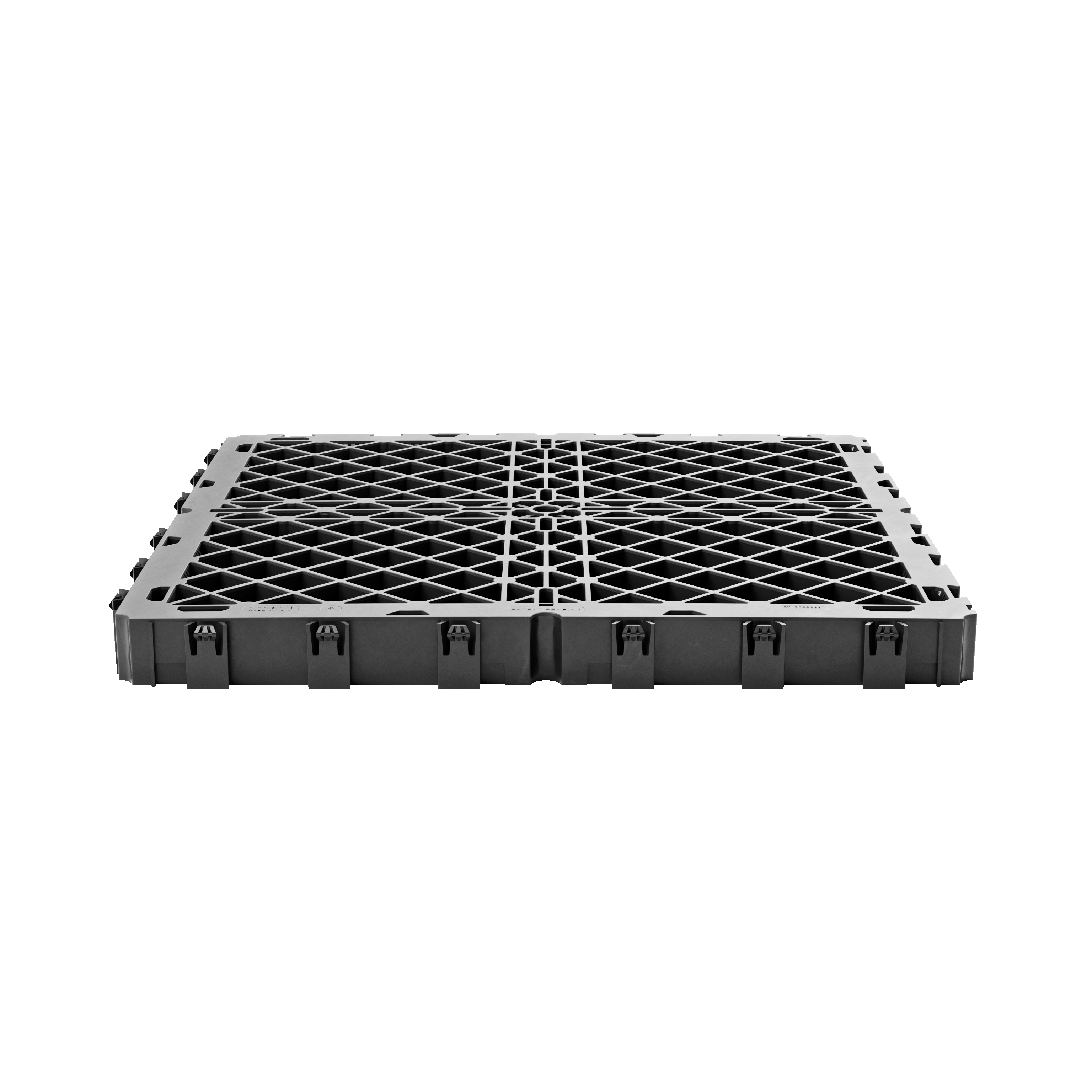

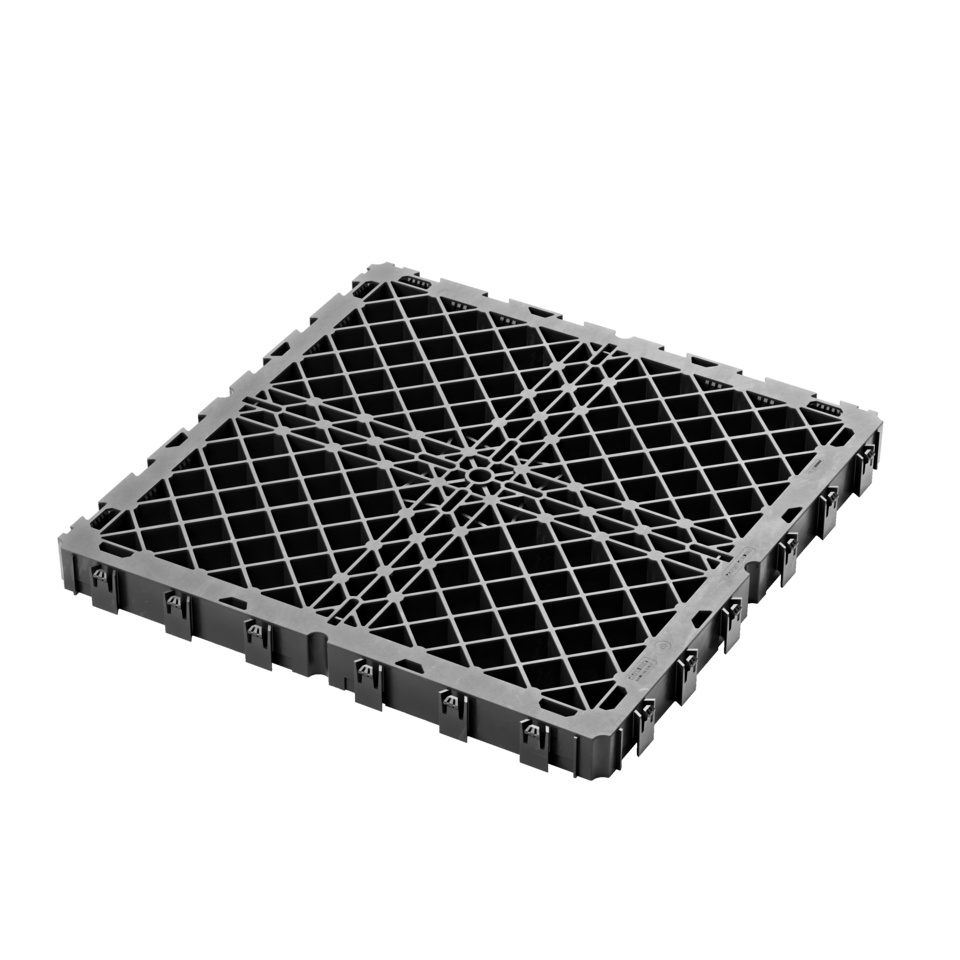

GRID Plus: the new grid with integrated anti-slip rubber.

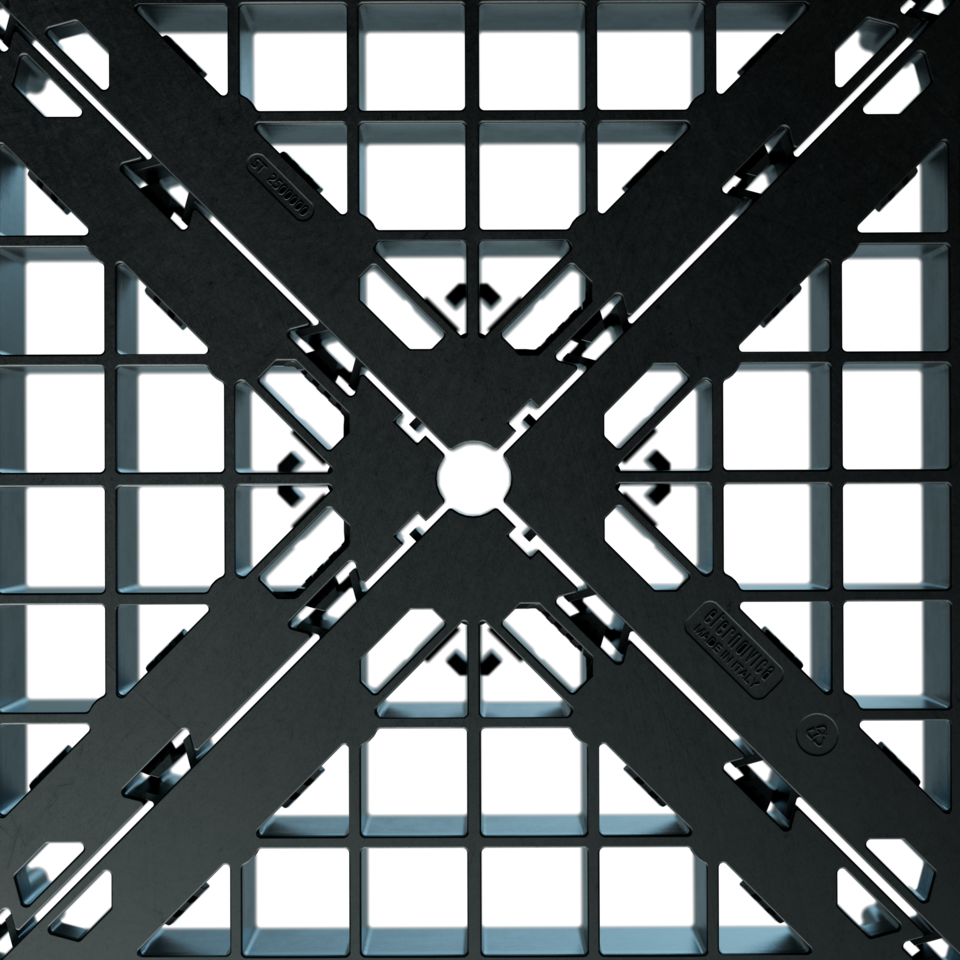

From the evolution of the GRF system grid comes the first Eterno Ivica grid with co-molded TPE anti-slip rubber on the surface. The integrated rubber reduces the slippage of the laid slabs, speeding up their positioning and minimizing post-laying movements. The Grid Plus is compatible not only with the tabs heads of the Pedestal line for direct slab laying but also with the new quick-connect heads for Grid Plus, that are available both self-leveling and fix.

The new quick-connect head for Grid Plus securely and stably fastens the supports to the Grid Plus through a rapid interlocking connection between the head hooks and the grid base. The quick-connect heads further stabilize the installation while still allowing access for inspection of the flooring.

The interlocking system present in the new Grid plus, which provides tolerance spaces between the male-female interlocks, autonomously manages the possible thermal expansions generated by seasonal temperature variations, preventing structural deformations of the laid floor.

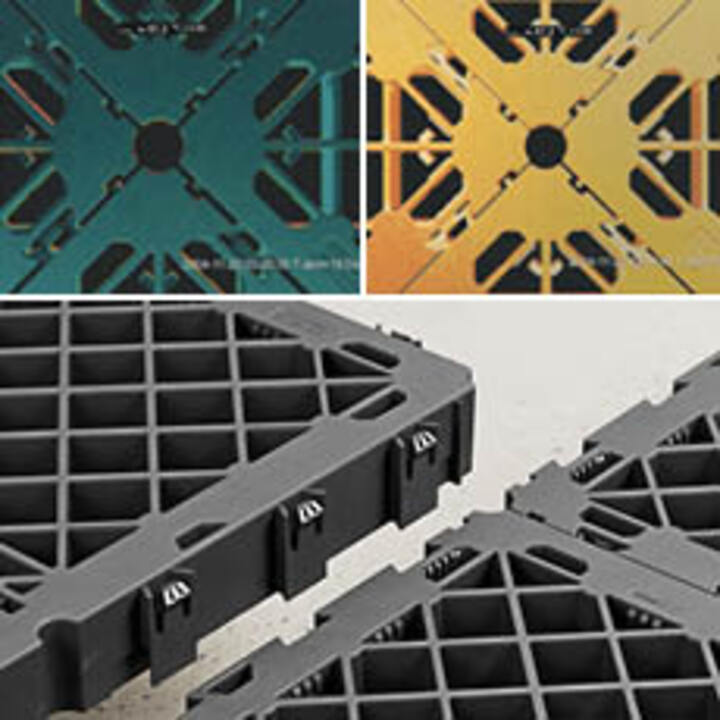

The new Grid Plus maintains the patented “dovetail” interlocking system already used for the standard GRF grid. The interlocking system between grid and grid allows for a continuous surface, with elements that join together quickly and easily. No additional accessories are needed to join the Grids together.

QUICK AND EASY INSTALLATION IN 3 STEPS

1. Place the supports on the laying surface and adjust them to the desired height; In order to increase the load-bearing capacity and stability of the system, a support can be added in the centre of each grid and/or in the centre of the 4 sides.

2. Place the grids on top of the supports, aligning them with the special slots provided, and interlock them using the “dovetail joint” connections. Achieve precise leveling of the grids using the adjustment key and a bubble or laser level tool.

3. Install the flooring self-supporting elements (porcelain stoneware, marble, etc.), taking care to place the DM spacer underneath the corners. The spacer serves the purpose of creating gaps and aligning the flooring elements. For vertical sealing, you can use a vertical perimeter profile or a plate edge profile paired with a base clip.
